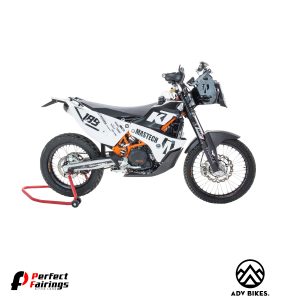

KTM 690 Enduro 2008 2018
Rally Adv Lite kit
This kit comes with 10L total fuel capacity without need an extra fuel pump as it works with gravity to feed the rear tank and from there straight to the bike .It comes with our hard tested and great navi tower ,made from Aluminium ,finished black color, which can hold your speedo and any kind of GPS or other equipment you need to add.
The lights are Hella brand ,street legal worldwide and its High – Low ,comes with their wiring harness and its already pre assembled on the tower.
The kit comes ready painted white ,optionally can be painted and add any grafics you like at an extra cost .
Details of the kit:

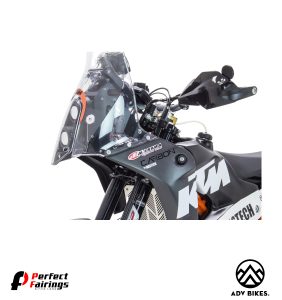

1.WINSHIELD ,OEM PARTS:
We use the OEM KTM DAKAR RALLY windshield ,headlight mask and stone guard protector for the lights .
OEM PART NUMBERS :
– 76408008000
-76412079000
-76408001000
These parts comes direct from KTM ,they are tested for over 4 Dakar rallies and on the hardest rally raid condition arround the world.
_____________________________________________________________________________________________________________________________

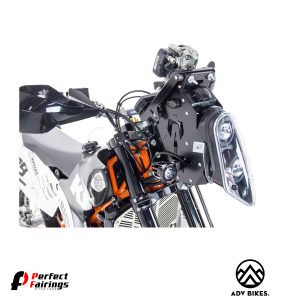

2.NAVIGATION TOWER:
The navigation tower is made from aluminium and comes ready pre assembled .It comes with bracket for OEM speedo and you can add any GPS or other navigation equipment you have .It fits direct on the bike with the support bracket which comes with the navi tower.
Tower comes ready with pre installed headlight mask ,lights,lights stone guard .
Benefits of the navigation tower:
- Compaq design
- Smart slots on the sides for easily use of fasteners ,this will allow you to tie the wiring inside perfectly
- Perfectly designed for OEM speedo meter and free space to add any equipment you like
- High quality aluminum
- Strong
_____________________________________________________________________________________________________________________________

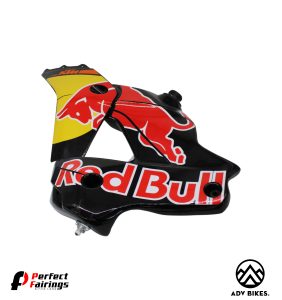

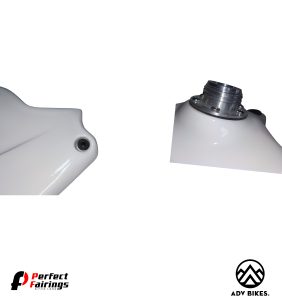

3.FUEL TANKS:
Our fuel tanks are made with Carbon Fiber ,multiple layers of mixed Carbon Fibers .Mixed Epoxy resins the best in the market and specially for fuel
resist .Fuel tanks are reinforced inside with vinylester for extra protection on fuel
resistance . Fuel tanks are 10L total , 5L per side .
We use aluminium fillers with viton sealers , Acerbis fuel caps,KTM OEM rubber bashes,KTM OEM petcocks with on off .

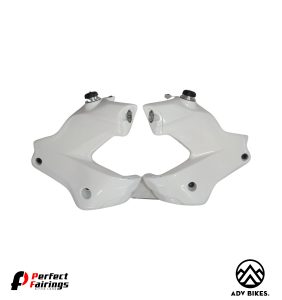

Fuel tanks comes painted white .
The design of our fuel tanks are made based on the OEM KTM Rally Dakar fuel tanks ,they have a direct fit which allow the stock exhaust and stock seat works perfectly .No need to cut anything from the bike frame in order to fit the tanks.
Fuel system works simple , all fuel tanks are connected together to work as one . Front fuel tanks are connected together and with a T connector feed the rear tank which is the main tank with the fuel pump . Gravity do the work and feed the rear tank .
_____________________________________________________________________________________________________________________________

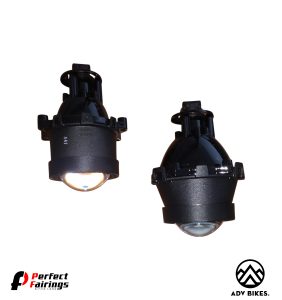

4. LIGHTING SYSTEM:
We choose to go with OEM lighting system ,as the Dakar bikes and also as many other Auto-Moto industries go .Hella lights Hi-Lo .Comes with plug and play hight quality wiring harness .
KTM OEM PART NUMBERS:
76414001000 Headlight High Beam
76214002000 Headlight Low beam

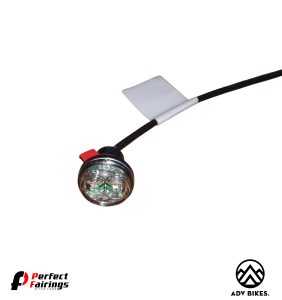

76414004000 Position Light
Lights details:

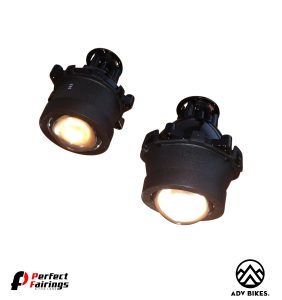

60mm High Beam Light:
Features:
• Very versatile high beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
• Light Source: HB3 /Specifications:
• Voltage: 12V
• Beam Pattern: High Beam
9005 12V/65W Bulb (T3-1/4 12V/3W (W3W) Bulb)
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: (021) ECE/SAE (031) ECE
60mm Low beam light
Features:
• Very versatile low beam lamp
• High performance in a compact design
• Exceptional performance and light distribution
Specifications:
• Voltage: 12V
• Beam Pattern: Low Beam
• Light Source: HB3 / 9005 12V/65W Bulb
• Power Consumption: 65W
• Housing Material: Plastic
• Optics: Lens
• Lens Material: Glass
• Connection: Bulb Plug
• Approval: SAE (For Motorcycles only) / ECE
“OEM quality wiring harness , plug and play “
_____________________________________________________________________________________________________________________________

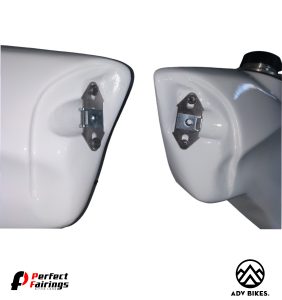

BRACKETS: All our bracket systems are made in order to fit fast ,clean and without any special tool .Comes with detailed instructrions .No need to cut or weld anything on the bike frame .
FUEL HOSES AND REAR TANK ADAPTER:
The fuel hoses we include are high quality fuel hoses ,reinforced .Comes with connectors ,quick disconect couplings and fuel filter .The connection is simple .Both front tanks are linked with T connector and goes direct on the rear tank.On the connection with the rear tank we have an adapter included .Rear tank adapter goes between the fuel pump and the the tank .
All parts comes ready ,painted ,drilled,finished ,with all their rubbers,screws,nuts and anything else you need to install them fast and easy
Except of the kit we offer some extra parts ,at an extra cost, which you can add on your order :
1.Comfort seat :
Our seats are made from Carbon Kevlar seat pan , comfort foam , suede cover with rally pocket in the front . 380 euro
2.Lower fender :
Lower fenders we offer are replica fenders of the OEM KTM Dakar bike .2 options on the materials ,fiberglass and Carbon Fiber . Are very strong ,durable with perfect fitment on the KTM 690 Enduro 2008-2018.
Fiberglass fender comes gel coat white
Carbon Fiber is comming finished matte or glossy.
Both are Un drilled
3.Carbon Fiber Navi tower:
This is a great upgrade of the kit ,if you are looking for an ultra light strong tower to fit your Roadbook equipment then this is the best option .Tower weights 900g
Upgrade Price from alum to CF
4.Radiator grill protection:
The best way to protect your expensive radiator .CNC Laser cutted ,perfect design ,light weight .Direct replacement of the plastic protector .More air to radiator ,better protection !
5.Engine guard CF:
This kit (Engine guard) includes a Carbon Fiber engine and fuel tanks protection with its brackets .
All the parts comes ready to mount and comes with instructions for an easy installation.
As extra you can add a CF toolbox ,extra cost 70 euro .Comes installed on the engine guard with its lid.
*Please contact us for delivery times
